Cross Flow Evaporative Condenser
It includes the spray water device, S-type condenser coil, PVC heat exchange layer, dehydrator, and the water tank at the bottom. It’s mostly used for Refrigeration, industrial field, chemical and steel industries.
Classification:
Cross Flow Evaporative Condenser
PRODUCT DETAILS
Product overview:
Cross flow evaporative condenser includes water spray device, S-type condenser coil, PVC heat exchange layer, dehydrator, and water tank at the bottom. High-temperature gaseous refrigerant in the evaporative condenser coil exchanges heat with the spray water and air outside the coil. The cooling water is pumped to the nozzles above the condenser coil by the water pump, and is evenly sprayed on the outer surface of the condenser coil. Axial flow fans bring air from outside into the evaporative condenser through forced circulation, which reduces the evaporation temperature of the water and promotes the evaporation of the water film, strengthening the heat release effect of the condenser coil. High-temperature gaseous refrigerant enters from the upper inlet of condenser coil and flows out from the lower outlet of the condenser coil after being cooled down. After absorbing the heat of the refrigerant, part of water evaporates into vapor which is sucked away by the axial flow fan and discharged to the outside. The other part of the cooling water that has not evaporated drops into the lower water tank after exchanging heat with the introduced fresh air, and the it is recirculated by water circulation pump.
Product features:
1. Energy saving and environmental protection with water and air as cooling media;
2. Multiple choices in casing and coil for different request;
3. High strength fiber fan blade for longer service life of fan;
4. Compacted coil structure realizes the larger heat exchanging size and higher heat exchanging efficiency;
5. PVC dehydrator and heat exchange layer with high water removal rate make water consumption less;
6. Special evaporative condenser water pump for larger water flow with a low power consumption;
7. Condenser coil with 2.0MPa design pressure and 2.8MPa test pressure.

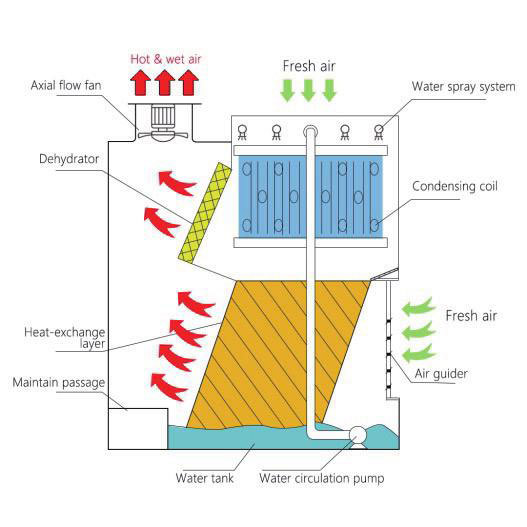

Working principle:
Key words:
Evaporative Condenser
